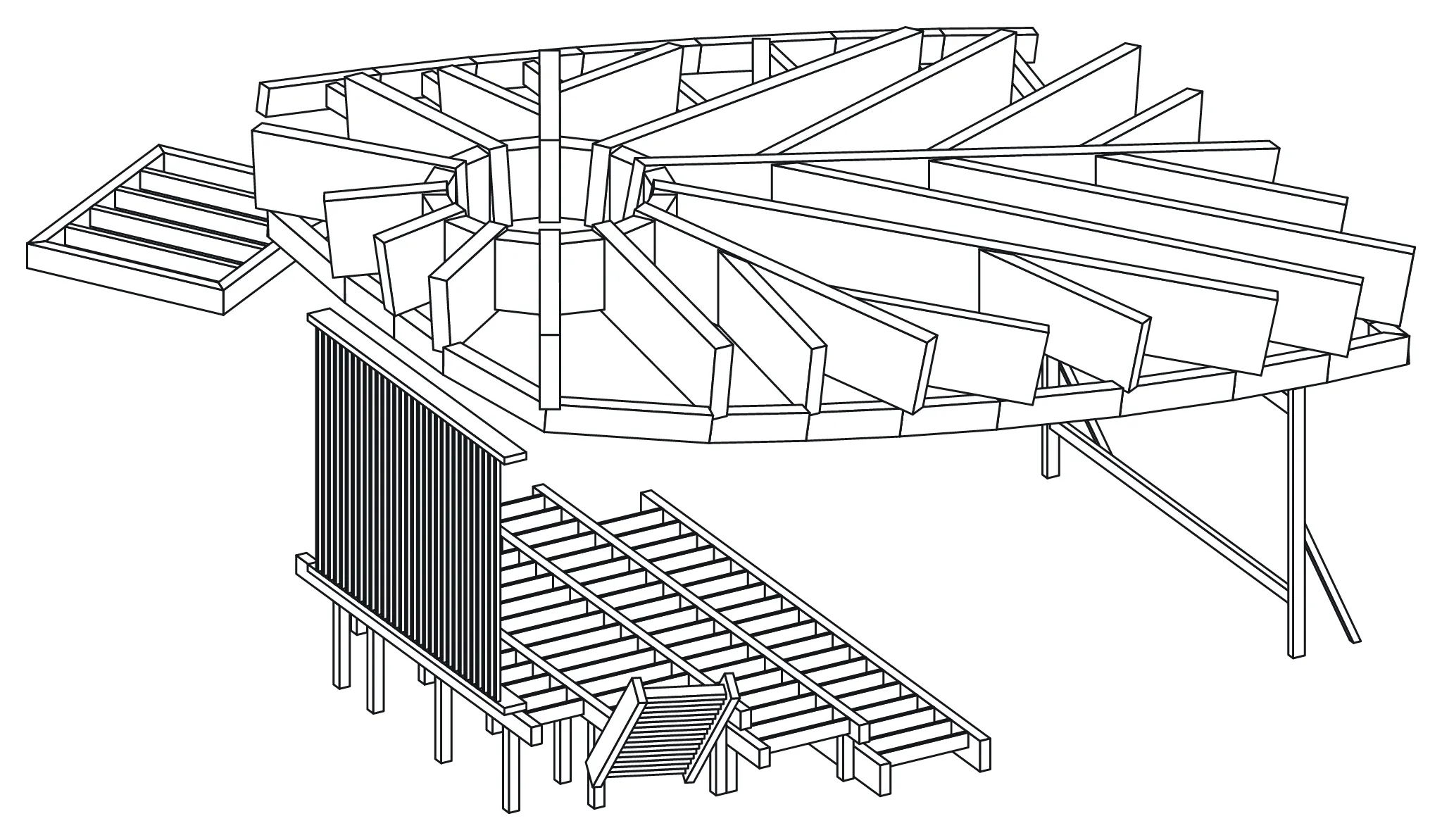

The Hollow forest cinema

Advanced Template 243 parts, 243 pieces

A sunken home cinema for a forest: a lopsided cone of radial glulam beams to an oculus ring, with a ramp and an exit stair.

Open in editor

Opens as a new project on this device. Open it again and you get a second copy; your first one is never overwritten.

Designed by an AI assistant

An AI assistant built this frame with the Zaaglijst tools from the brief below. It validates with zero warnings, but nobody has checked it as a structure. See AI assistants to design your own.

The brief

Three radically different freestanding wooden home cinemas for a forest or garden. Acoustically sound, buildable in wood, and no traditional house shapes.

What you learn

• See how radial beams meet at an oculus ring.
• Study the stepped seating tiers and the covered ramp.
• Look at the fin diffuser and the exit stair.
• Use it as a starting point for a round roof.

Parts

243 parts, grouped by profile. Open the project to see every part.

Profile (mm)	Parts	Pieces	Total length (m)
45 x 195	70	70	84.9
240 x 1000	12	12	48
200 x 960	12	12	47.1
240 x 360	26	26	37.5
140 x 240	5	5	35.5
140 x 140	27	27	23.9
280 x 60	16	16	16
140 x 400	2	2	16
140 x 280	7	7	13.7
100 x 400	2	2	12.7
160 x 320	4	4	11.6
200 x 360	7	7	10.2
100 x 240	4	4	9.4
300 x 90	2	2	9.3
115 x 160	2	2	7
280 x 920	12	12	6.5
45 x 70	2	2	6.3
45 x 95	2	2	6.3
45 x 135	2	2	6.3
45 x 275	2	2	6.3
45 x 105	2	2	6.3
45 x 215	2	2	6.3
45 x 75	2	2	6.3
45 x 225	2	2	6.3
45 x 120	2	2	6.3
45 x 300	2	2	6.3
45 x 230	2	2	6.3
45 x 180	2	2	6.3
45 x 145	2	2	6.3
45 x 130	2	2	6.3
90 x 240	1	1	5.7
90 x 160	1	1	5.7
90 x 90	2	2	3.8
45 x 60	1	1	3.2
