Saddle roof tiny house

Advanced Template 99 parts, 99 pieces

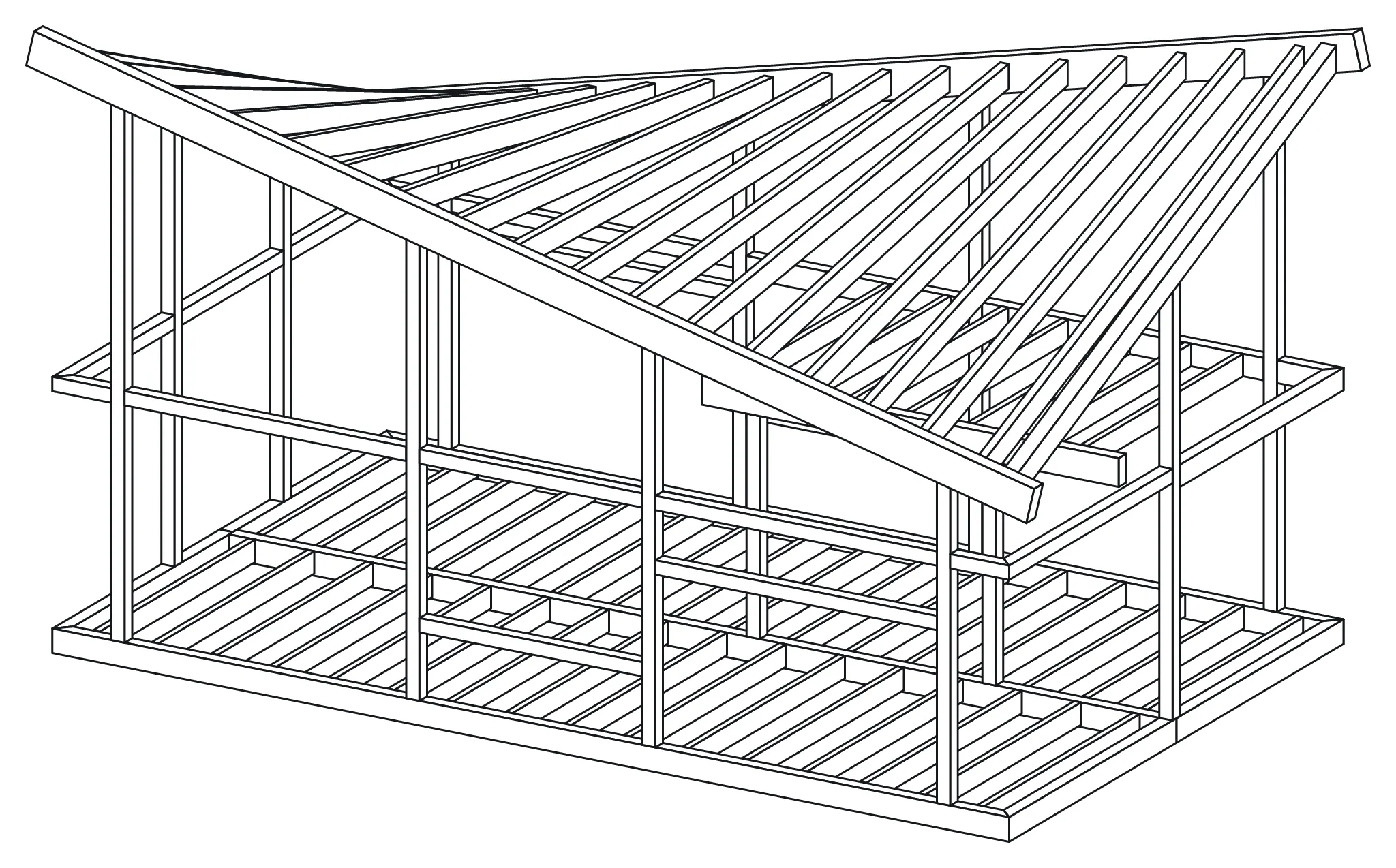

A 10 by 6 m tiny house under a saddle roof of straight glulam rafters, with post-free glass corners and a loft under the high corner.

Open in editor

Opens as a new project on this device. Open it again and you get a second copy; your first one is never overwritten.

Designed by an AI assistant

An AI assistant built this frame with the Zaaglijst tools from the brief below. It validates with zero warnings, but nobody has checked it as a structure. See AI assistants to design your own.

The brief

A 10 × 6 m tiny house with high ceilings and big windows. It may be experimental.

What you learn

• See how straight rafters, each with its own length and bevels, make a curved roof.
• Study the crossing edge beams that leave all four corners free of posts.
• Look at the loft beam that cantilevers past two posts.
• Use it as a starting point for a small house with a loft.

Parts

99 parts, grouped by profile. Open the project to see every part.

Profile (mm)	Parts	Pieces	Total length (m)
70 x 220	39	39	111.5
90 x 240	16	16	96.6
140 x 140	28	28	83.4
140 x 240	7	7	42.4
160 x 360	2	2	21.8
160 x 240	2	2	12.8
140 x 220	4	4	9
140 x 280	1	1	4.4
