Pergola

Beginner Template 11 parts, 11 pieces

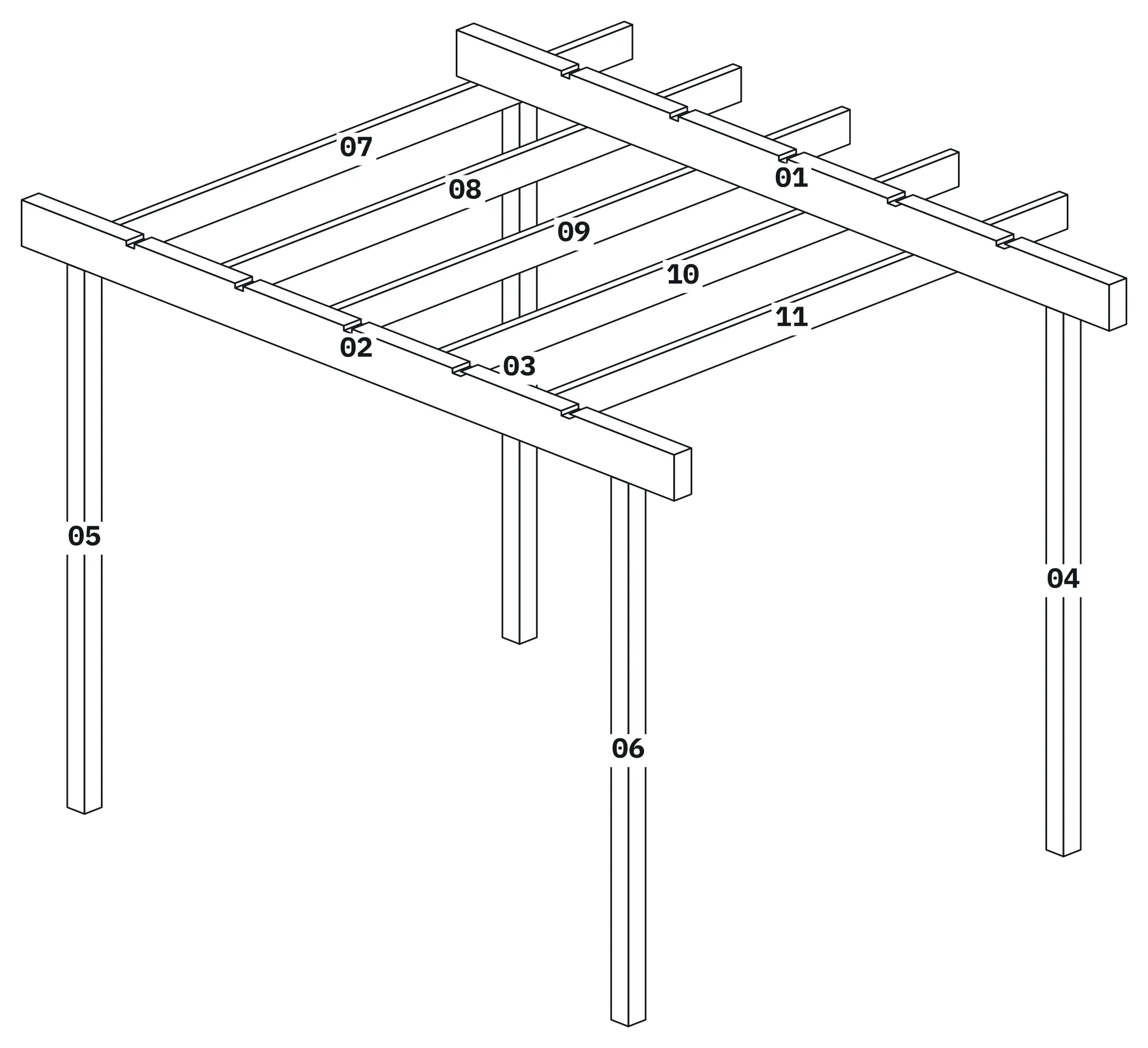

A freestanding 3000 x 2400 mm pergola with four posts, two beams and five notched rafters. Adjust the sizes to suit your garden.

Open in editor

Opens as a new project on this device. Open it again and you get a second copy; your first one is never overwritten.

What you learn

• Stand posts under beams so they are cut to fit
• Repeat a rafter at a fixed spacing
• See half laps where rafters cross the beams
• Change the post height, overhang or rafter count

Parts

No.	Name	Profile (mm)	Length (mm)	Qty	Processings
01	Beam back	95 x 195	3600	1	5
02	Beam front	95 x 195	3600	1	5
03	Post back left	95 x 95	2303	1	0
04	Post back right	95 x 95	2303	1	0
05	Post front left	95 x 95	2303	1	0
06	Post front right	95 x 95	2303	1	0
07	Rafter 1	45 x 145	3000	1	2
08	Rafter 2	45 x 145	3000	1	2
09	Rafter 3	45 x 145	3000	1	2
10	Rafter 4	45 x 145	3000	1	2
11	Rafter 5	45 x 145	3000	1	2

Processings used

• Notch
