Simple frame

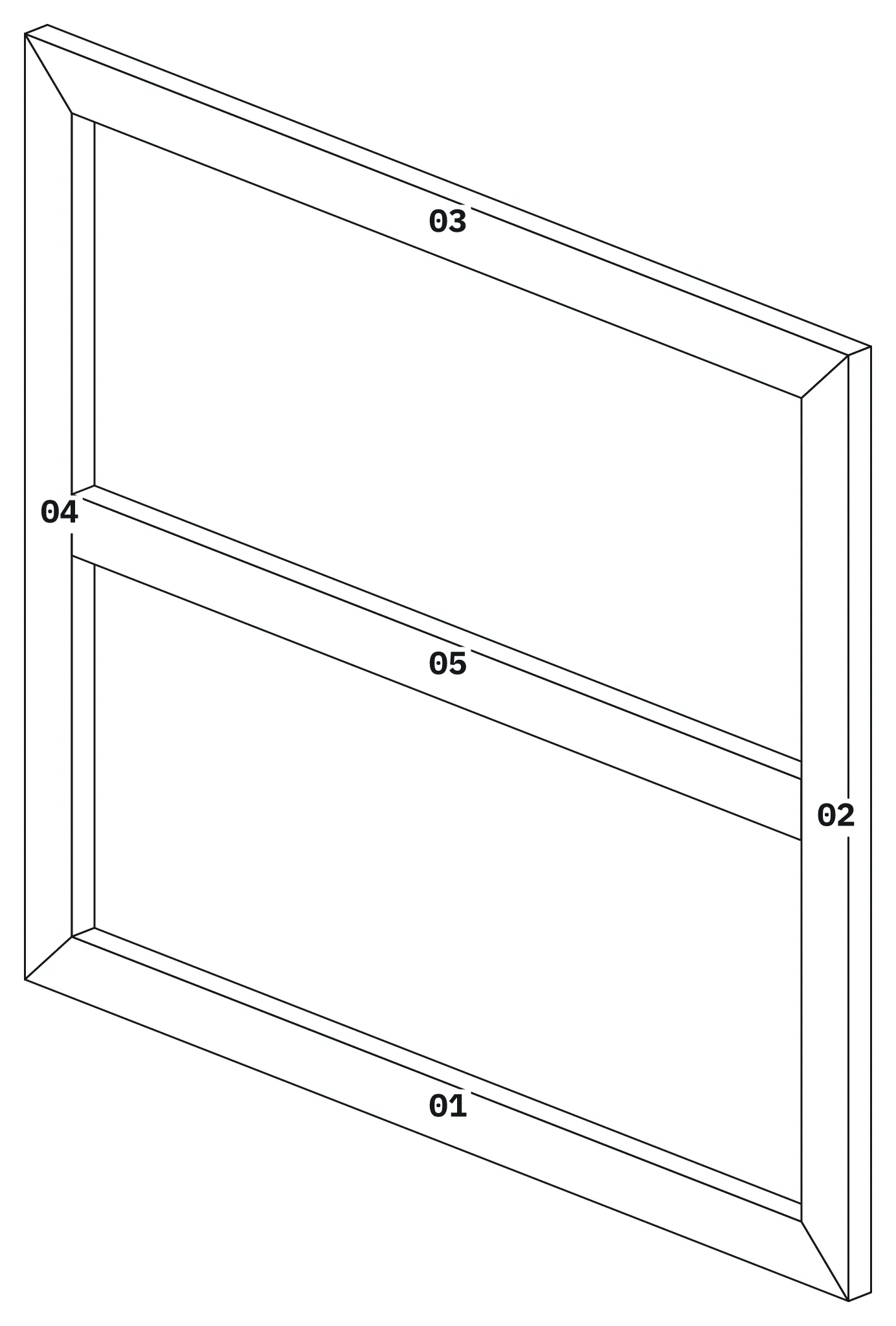

A mitred 2400 x 2100 mm timber frame with two posts, a top and bottom rail, and a mid rail. Change the span or height to fit your opening.
Opens as a new project on this device. Open it again and you get a second copy; your first one is never overwritten.
What you learn
- Build a rectangular frame with one generator
- Change the span, height or timber section
- Land a mid rail on both posts
- Read the mitre and butt cuts in the cutting list
Parts
| No. | Name | Profile (mm) | Length (mm) | Qty | Processings |
|---|---|---|---|---|---|
| 01 | Frame bottom | 70 x 145 | 2545 | 1 | 0 |
| 02 | Frame right | 70 x 145 | 2245 | 1 | 0 |
| 03 | Frame top | 70 x 145 | 2545 | 1 | 0 |
| 04 | Frame left | 70 x 145 | 2245 | 1 | 0 |
| 05 | Mid rail | 70 x 145 | 2255 | 1 | 0 |
