Trestle bench with mortise and tenon

Intermediate Example 5 parts, 10 pieces

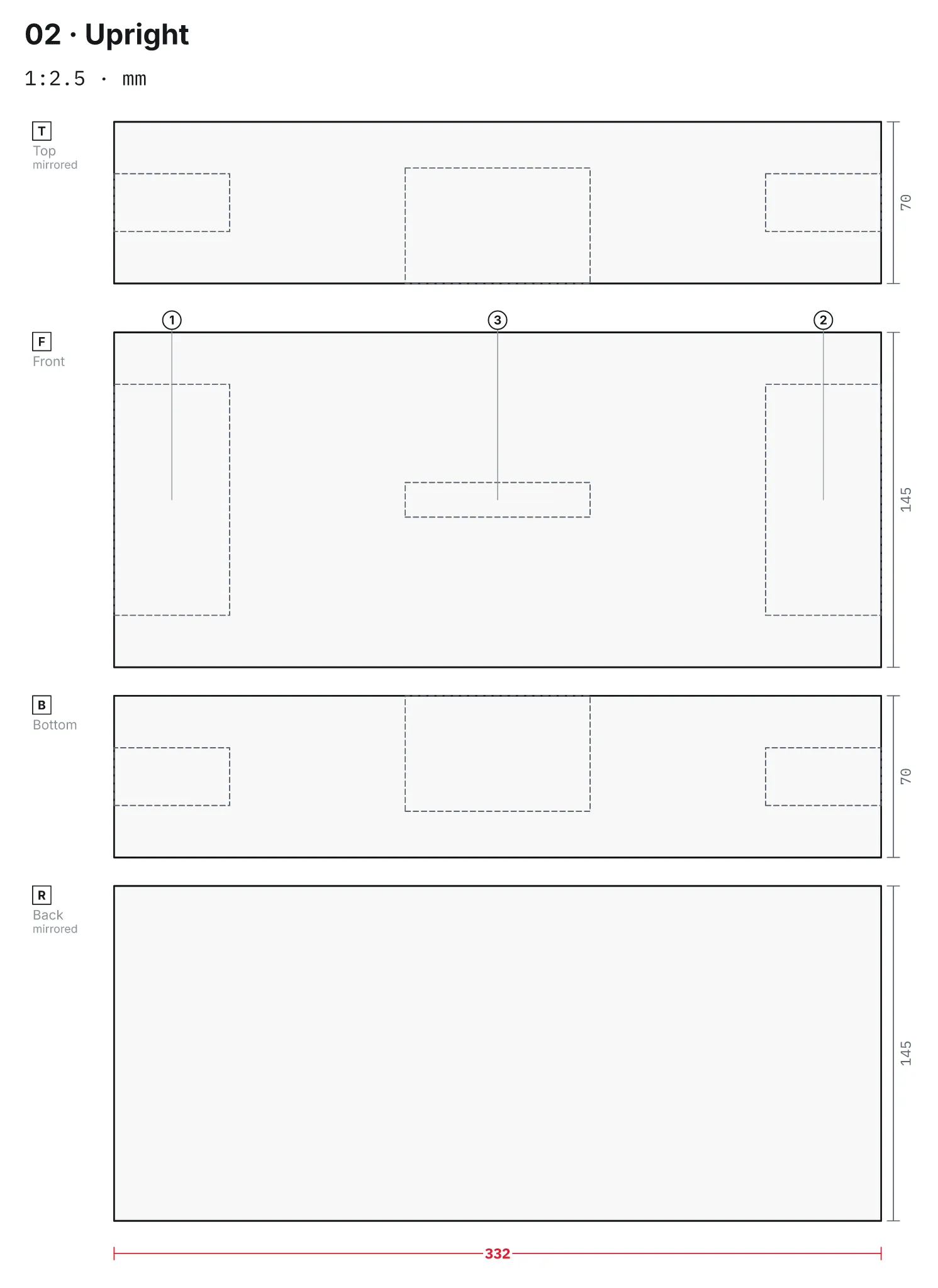

A garden trestle bench whose uprights, bearers, feet and stretcher join with matching mortises and tenons, plus a groove for seat buttons.

Open in editor

Opens as a new project on this device. Open it again and you get a second copy; your first one is never overwritten.

What you learn

• Add tenons to both ends of a part and set the shoulder with x
• Size each mortise to match the tenon that goes into it
• Cut a lengthwise groove for seat buttons
• Change the bench length by editing the stretcher and slats

Parts

No.	Name	Profile (mm)	Length (mm)	Qty	Processings
01	Foot	70 x 95	400	2	2
02	Upright	70 x 145	332	2	3
03	Seat bearer	70 x 95	400	2	3
04	Stretcher	45 x 120	1160	1	2
05	Seat slat	28 x 145	1500	3	0

Processings used

• Chamfer
• Mortise
• Slot
• Tenon
