Garden house frame

Intermediate Template 36 parts, 36 pieces

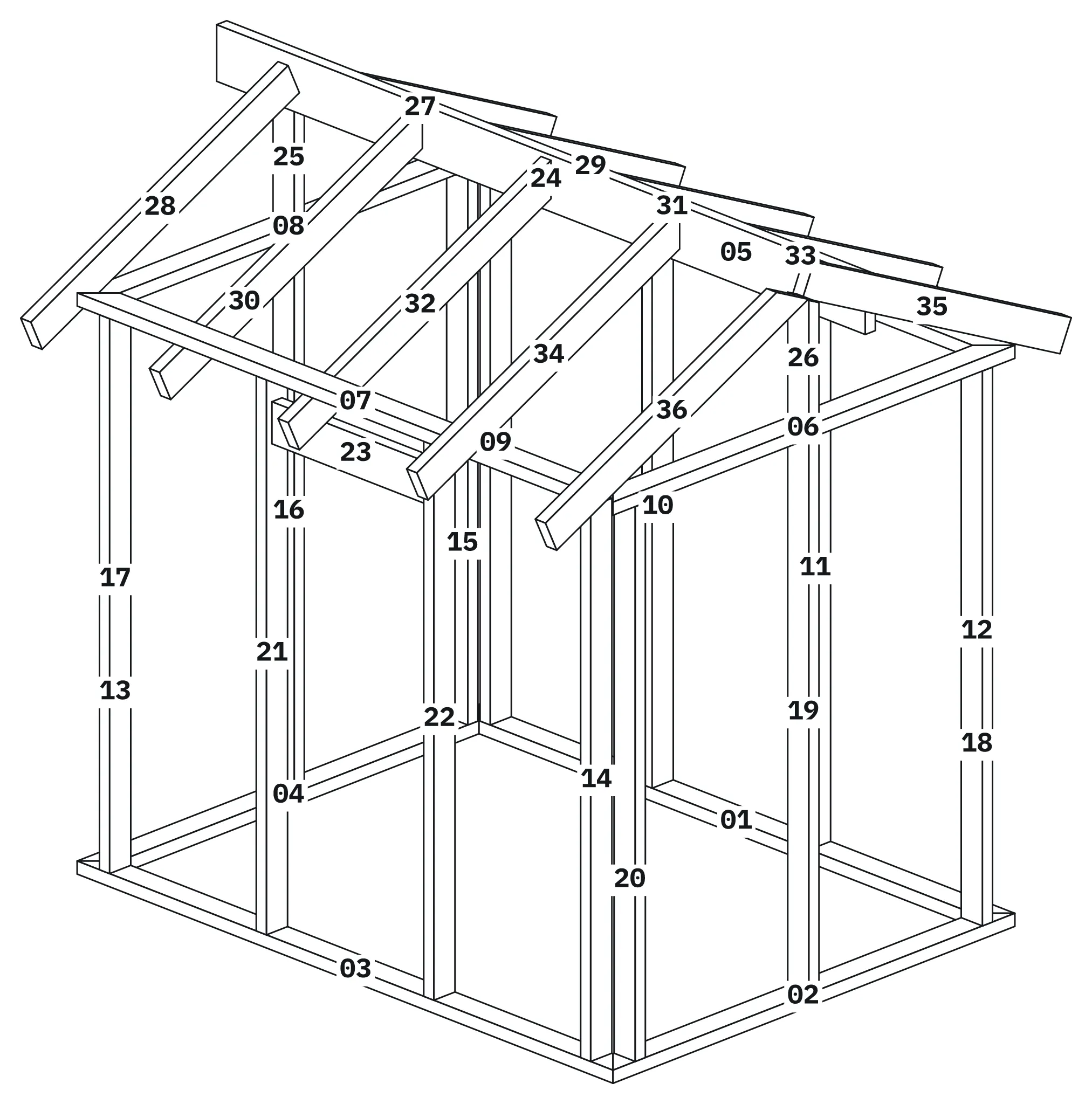

Drawing of Garden house frame, made by the project CLI

A 2.4 by 1.8 metre garden house frame with stud walls, a door opening and a gable roof on a ridge beam, in 36 parts.

Open in editor

Opens as a new project on this device. Open it again and you get a second copy; your first one is never overwritten.

What you learn

  • Make sole and top plates with two frame generators
  • Land studs between plates so they are cut to length
  • Frame a door opening with jambs and a header
  • Copy a rafter pair along the ridge with a repeat
  • Add scribe lines and a part label to the ridge

Parts

36 parts, grouped by profile. Open the project to see every part.

Profile (mm)PartsPiecesTotal length (m)
95 x 45242444.3
45 x 120101012.7
45 x 195112.9
45 x 145110.7

Processings used

  • Marking: Scribe a line across a face to mark a position for assembly. Angle and single or double style, with defaults and machine export.
  • Text: Put text on the timber, such as the part number, so parts are easy to find on site. Fields, defaults and machine export.
  • Trestle bench with mortise and tenon: A garden trestle bench whose uprights, bearers, feet and stretcher join with matching mortises and tenons, plus a groove for seat buttons.
  • Single carport: A 3 by 5.6 metre single carport with six posts, knee braces, two beams and eleven rafters notched over the beams.
