Single carport

Intermediate Template 27 parts, 27 pieces

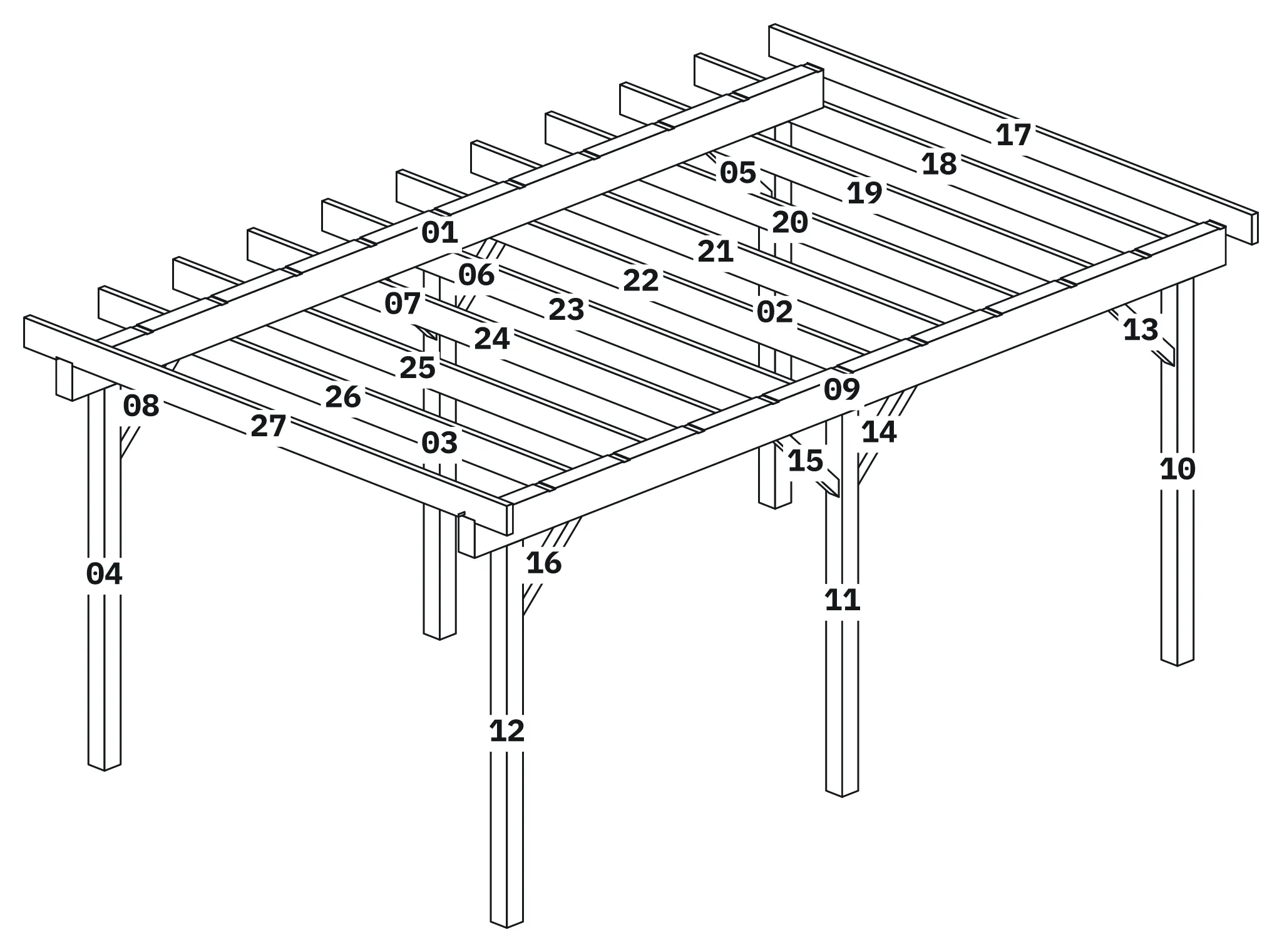

A 3 by 5.6 metre single carport with six posts, knee braces, two beams and eleven rafters notched over the beams.

Open in editor

Opens as a new project on this device. Open it again and you get a second copy; your first one is never overwritten.

What you learn

• Build one side frame, then copy it with a repeat generator
• Land posts and braces on a beam so they are cut to its face
• Space rafters evenly with a repeat and a name template
• Let crossing rafters and beams get notches, then set the depth split

Parts

No.	Name	Profile (mm)	Length (mm)	Qty	Processings
01	Beam left	120 x 220	5600	1	11
02	Post left 1	120 x 120	2190	1	0
03	Post left 2	120 x 120	2190	1	0
04	Post left 3	120 x 120	2190	1	0
05	Brace left 1	70 x 70	678	1	0
06	Brace left 2	70 x 70	678	1	0
07	Brace left 3	70 x 70	678	1	0
08	Brace left 4	70 x 70	678	1	0
09	Beam right	120 x 220	5600	1	11
10	Post right 1	120 x 120	2190	1	0
11	Post right 2	120 x 120	2190	1	0
12	Post right 3	120 x 120	2190	1	0
13	Brace right 1	70 x 70	678	1	0
14	Brace right 2	70 x 70	678	1	0
15	Brace right 3	70 x 70	678	1	0
16	Brace right 4	70 x 70	678	1	0
17	Rafter 1	45 x 170	3600	1	2
18	Rafter 2	45 x 170	3600	1	2
19	Rafter 3	45 x 170	3600	1	2
20	Rafter 4	45 x 170	3600	1	2
21	Rafter 5	45 x 170	3600	1	2
22	Rafter 6	45 x 170	3600	1	2
23	Rafter 7	45 x 170	3600	1	2
24	Rafter 8	45 x 170	3600	1	2
25	Rafter 9	45 x 170	3600	1	2
26	Rafter 10	45 x 170	3600	1	2
27	Rafter 11	45 x 170	3600	1	2

Processings used

• Notch
